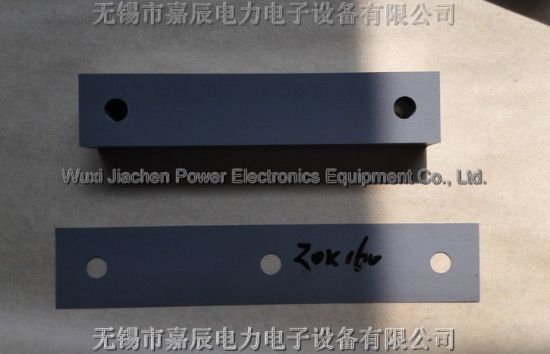

Rectangular Silicon Steel Sheet Laminations Cut Core

Model NO.: 30mm
Usage: Single-phase Transformer, Rectifier Transformer, Combined Transformer, Power Transformer, Distribution Transformer
Frequency Characteristics: Power Frequency
Shape of Core: Stacked Cores
Brand: Jiachen
Trademark: JIACHEN
Transport Package: Standard Export Package for Ocean Transportation
Specification: ROHS REACH
Origin: China
HS Code: 8054901900

Quantity:



Inquire Add to Basket

Product Description

Introduction:

Our Rectangular Laminations Are Widely Used In Reactor, Auto-Transformers, Power Transformer, Electronics Transformer, Converters Etc. Especially For Energy-Saving Transformers In China; We Could Provide Our Customers With Single Phase Wound Cores, Three Phase Cores; The Dimension(Width) Could Be Range From 3mm To 300mm, Legth Could 3mm-2500mm.

Manufacturing Requirements:

Tolerance: The Specified Requirements Should Be Coincide With Customers Drawings;
Materials:We Could Choose Nippon Steel, Baosteel, WISCO And Other Steel Plants Products To Meet Customers Core Loss Requirements; In Order To Make Sure We Choose The Right Material, We Would Like Our Customers To Provide Us With Detailed Drawings Including Dimensions And Necessary Technical Parameters.
Usually, We Use 0.18mm, 0.20mm, 0.23mm, 0.27mm, 0.30mm, 0.35mm, 0.50mm Material.
Advantages:
(1) Lower Core Loss
(2) Less Noiseness
(3) Sound Short-Circuit Resistant

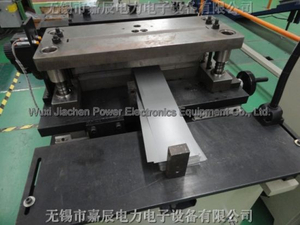

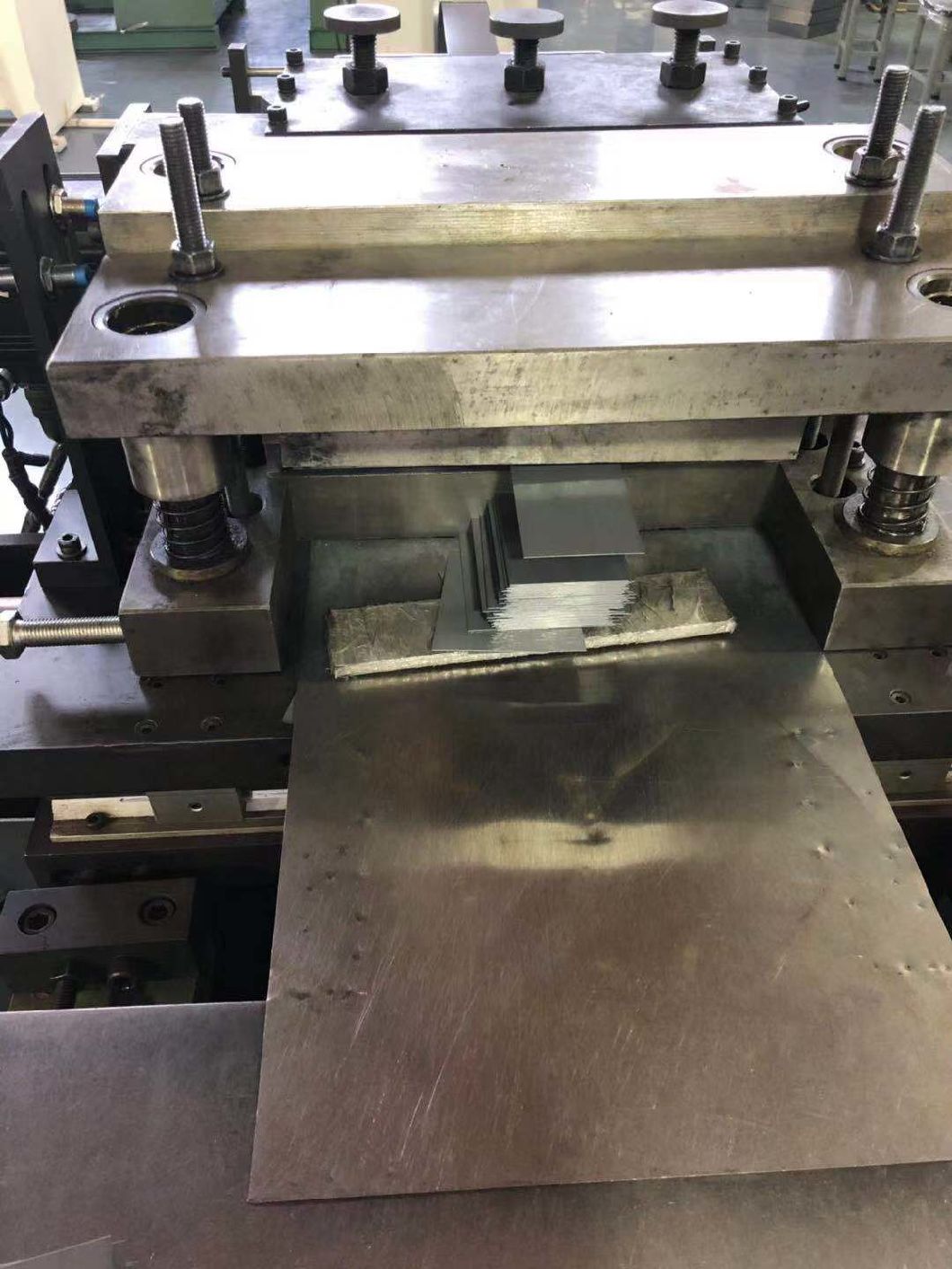

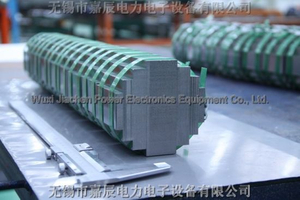

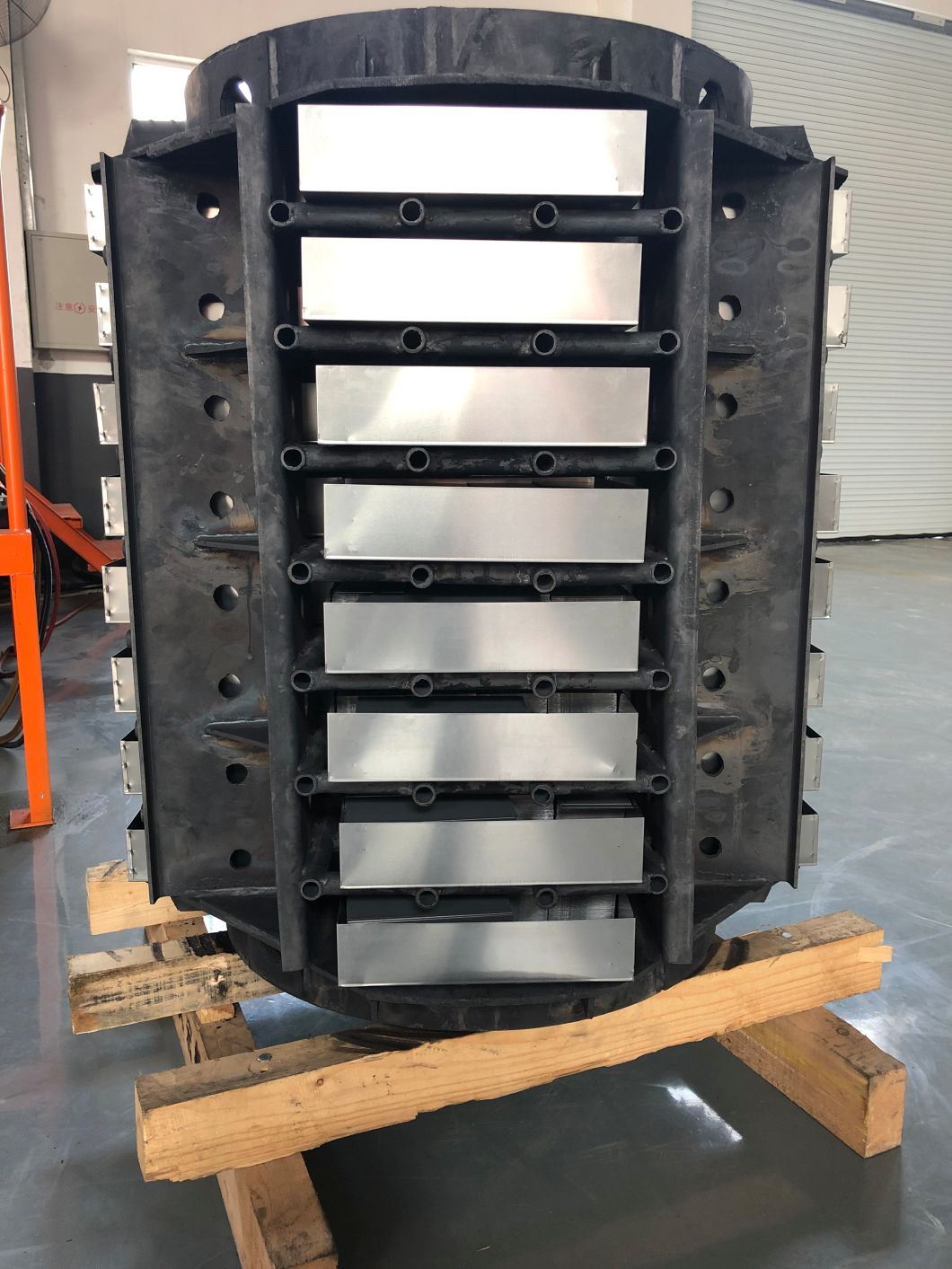

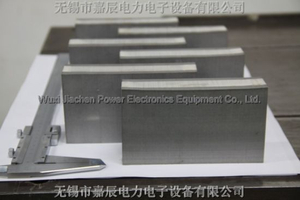

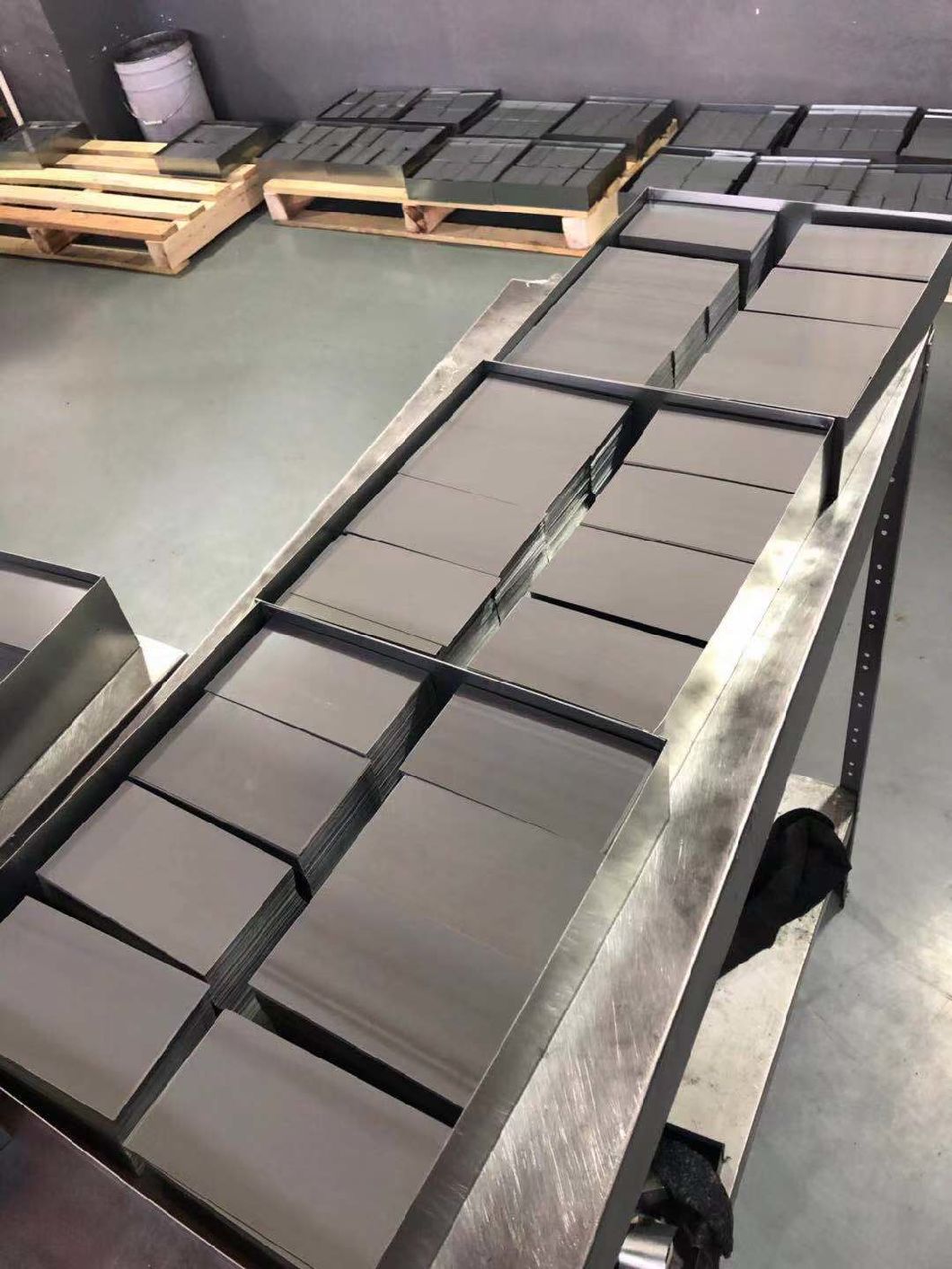

Product Show

Product Details

Material	Cold-Rolled Oriented Silicon Steel/Non-Oriented Silicon Steel
	CRGO: 20ZDKH75, B20P075, B20P070, B18R070 B23G110, B23G100, B23P100, B23R095, B23R090, 23ZH90, 23QG090 B23R080 27Q120, 27QG100, 27QG095, B27P120, B27P100, B27P095 30Q130, 30Q120, 30QG105; B30G130, B30G120, B30P120, B30P105 35Q155, B35G155, 35Z155
	CRNGO: B35A270, B35A250, B35A230, B35A300, 35WW270, 35WW250, 35WW230 B50A Grade 800, B50A600, B50A470, B50A400, B50A310, B50A290, B50A250, B50A1300, B50A1000
Form	Annealed / Non-Annealed / Rectangular/ Three Phase / Single Phase
Dimension	Width: 3-300mm; Length: 3-2500mm
Thickness	0.1mm, 0.18mm, 0.20mm, 0.23mm,0.27mm,0.30mm,0.35mm, 0.5mm
