60mm
Jiachen
Single- phase Transformer, Rectifer Transformer, Combined Transformer, Power Transformer, Distribution Transformer
Stacked Cores
Standard Export Package for
Ocean Transportation
JIACHEN
China
5000mt/Month
Power Frequency
ROHS REACH
8054901900
| Quantity: | |
|---|---|
Introduction:
Our Rectangular Laminations Are Widely Used In Reactor, Auto-Transformers, Power Transformer, Electronics Transformer, Converters Etc. Especially For Energy-Saving Transformers In China; We Could Provide Our Customers With Single Phase Wound Cores, Three Phase Cores; The Dimension(Width) Could Be Range From 3mm To 300mm, Legth Could 3mm-2500mm.
Manufacturing Requirements:
Tolerance: The Specified Requirements Should Be Coincide With Customers Drawings;
Materials:We Could Choose Nippon Steel, Baosteel, WISCO And Other Steel Plants Products To Meet Customers Core Loss Requirements; In Order To Make Sure We Choose The Right Material, We Would Like Our Customers To Provide Us With Detailed Drawings Including Dimensions And Necessary Technical Parameters.
Usually, We Use 0.18mm, 0.20mm, 0.23mm, 0.27mm, 0.30mm, 0.35mm, 0.50mm Material.
Advantages:
(1) Lower Core Loss
(2) Less Noiseness
(3) Sound Short-Circuit Resistant

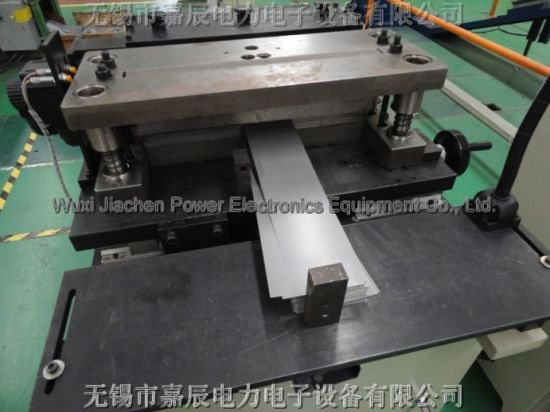

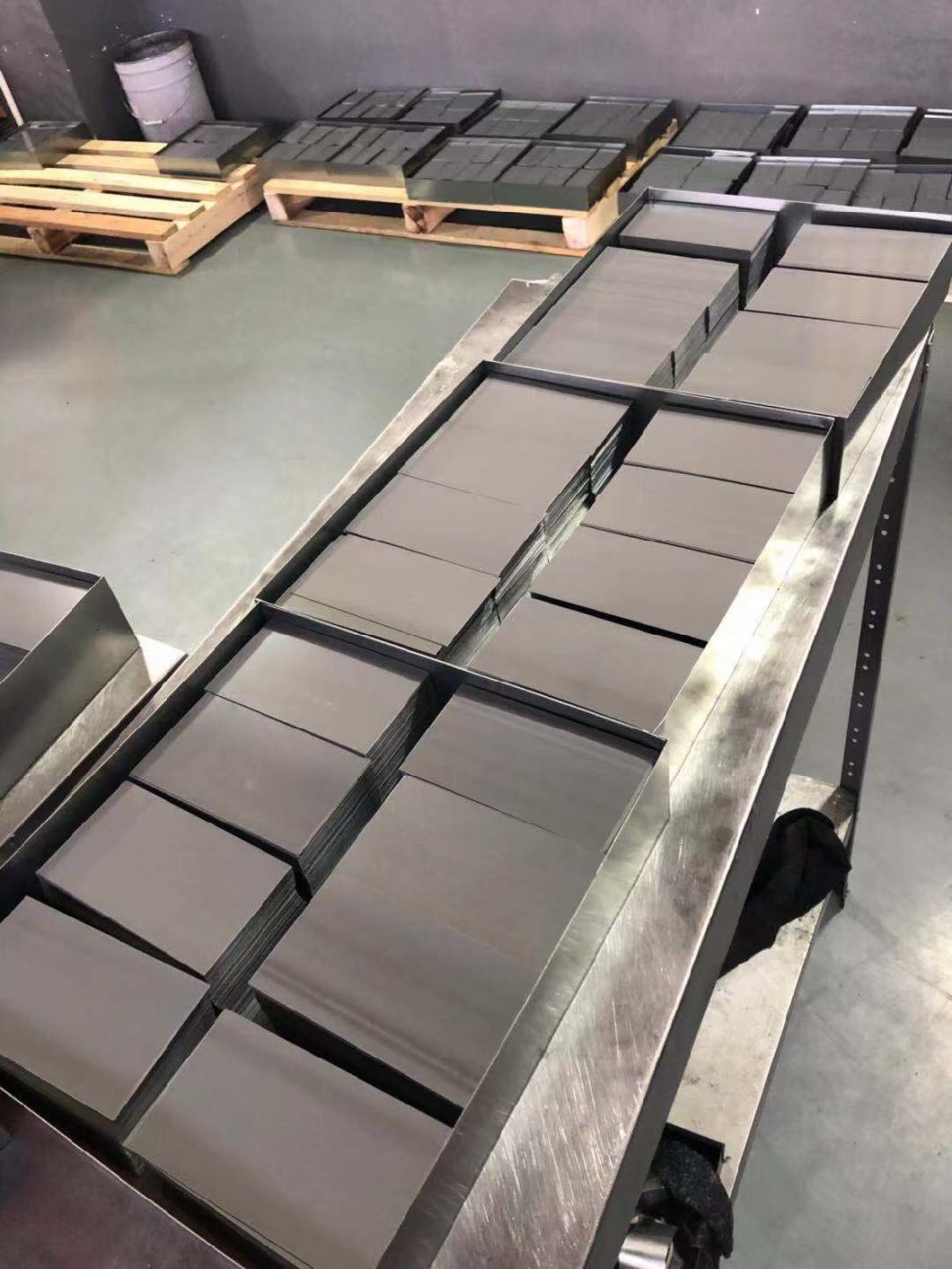

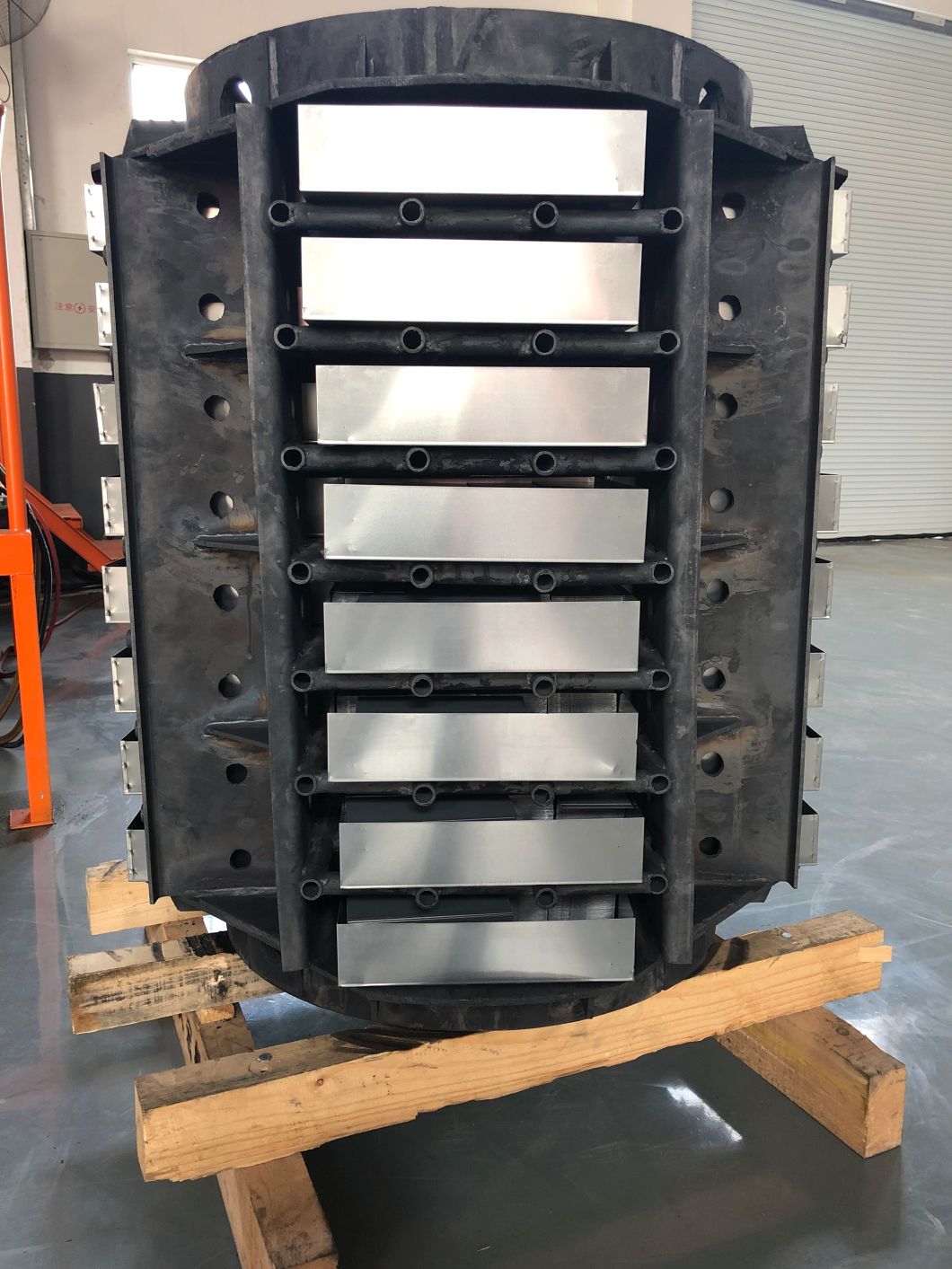

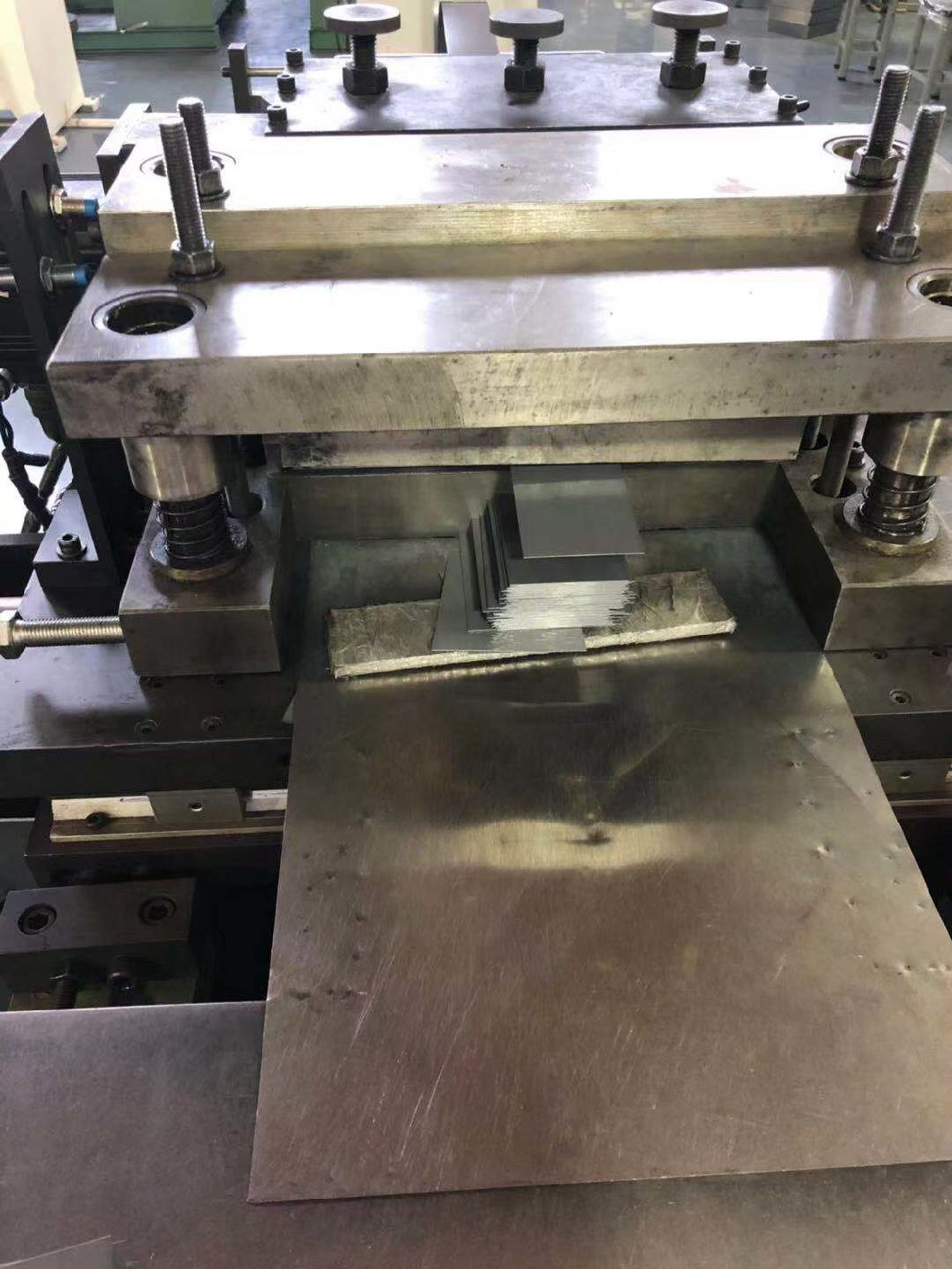

Product Show
 |  |  |
Product Details
| Material | Cold-Rolled Oriented Silicon Steel/Non-Oriented Silicon Steel |
| CRGO: 20ZDKH75, B20P075, B20P070, B18R070 B23G110, B23G100, B23P100, B23R095, B23R090, 23ZH90, 23QG090 B23R080 27Q120, 27QG100, 27QG095, B27P120, B27P100, B27P095 30Q130, 30Q120, 30QG105; B30G130, B30G120, B30P120, B30P105 35Q155, B35G155, 35Z155 | |
| CRNGO: B35A270, B35A250, B35A230, B35A300, 35WW270, 35WW250, 35WW230 B50A Grade 800, B50A600, B50A470, B50A400, B50A310, B50A290, B50A250, B50A1300, B50A1000 | |
| Form | Annealed / Non-Annealed / Rectangular/ Three Phase / Single Phase |
| Dimension | Width: 3-300mm; Length: 3-2500mm |
| Thickness | 0.1mm, 0.18mm, 0.20mm, 0.23mm,0.27mm,0.30mm,0.35mm, 0.5mm |
Packing
