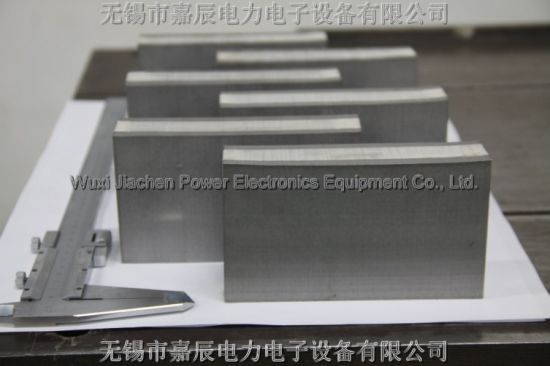

Reactor Laminations Cut Core-70mm

Introduction:

Our Rectangular Laminations Are Widely Used In Reactor, Auto-Transformers, Power Transformer, Electronics Transformer, Converters Etc. Especially For Energy-Saving Transformers In China; We Could Provide Our Customers With Single Phase Wound Cores, Three Phase Cores; The Dimension(Width) Could Be Range From 3mm To 300mm, Legth Could 3mm-2500mm.

Manufacturing Requirements:
Tolerance: The Specified Requirements Should Be Coincide With Customers Drawings;
Materials:We Could Choose Nippon Steel, Baosteel, WISCO And Other Steel Plants Products To Meet Customers Core Loss Requirements; In Order To Make Sure We Choose The Right Material, We Would Like Our Customers To Provide Us With Detailed Drawings Including Dimensions And Necessary Technical Parameters.
Usually, We Use 0.18mm, 0.20mm, 0.23mm, 0.27mm, 0.30mm, 0.35mm, 0.50mm Material.
Advantages:
(1) Lower Core Loss
(2) Less Noiseness
(3) Sound Short-Circuit Resistant

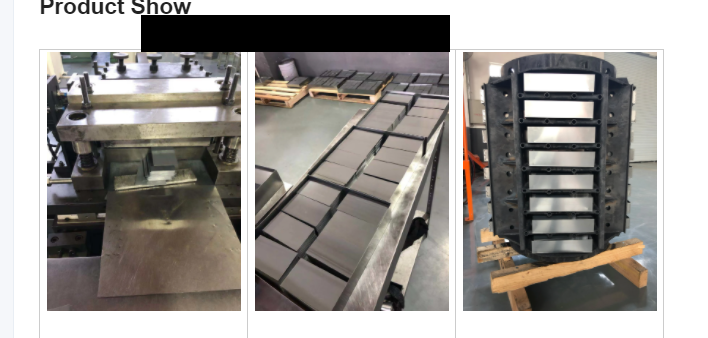

Product Show

Product Details

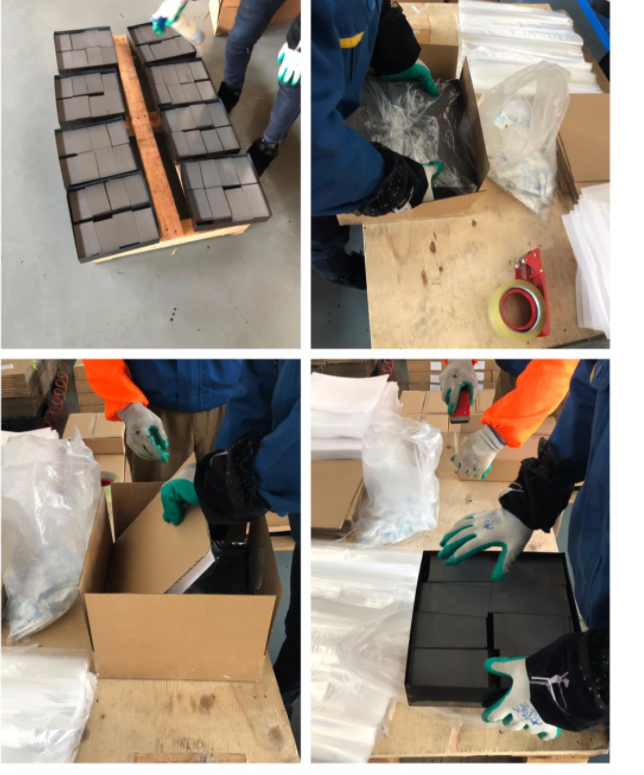

Packing
