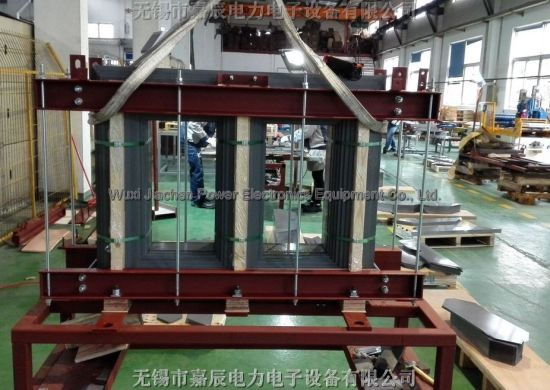

Oil Immersed Transformer Stacked Core-800kVA

  • 800KVA

  • Jiachen

  • Single- phase Transformer, Rectifier Transformer, Combined Transformer, Power Transformer, Distribution Transformer

  • Stacked Cores

  • Standard Export Package for
    Ocean Transportation

  • JIACHEN

  • China

  • 5000mt/Month

  • Power Frequency

  • ROHS REACH

  • 8054901900

Availability:
Quantity:


Introduction:
Our Transformer cores are widely used in distribution transformers, power transformer, electronics transformer, reactors, converters etc. especially for S13 type energy-saving transformers in China; we could provide our customers with single phase wound cores, three phase wound cores; The capacity range from 100KVA to 20000KVA.

Manufacturing Requirements:
Tolerance: The Specified Requirements Should Be Coincide With Customers Drawings.
Materials:We Could Choose Nippon Steel, Baosteel, WISCO And Other Steel Plants Products To Meet Customers Core Loss Requirements; In Order To Make Sure We Choose The Right Material, We Would Like Our Customers To Provide Us With Detailed Drawings Including Dimensions And Necessary Technical Parameters.
Usually, We Use 0.18mm, 0.20mm, 0.23mm, 0.27mm, 0.30mm, 0.35mm, 0.50mm Material.

Features:
(1) Lower Core Loss
(2) Less Noiseness
(3) Sound Short-Circuit Resistant

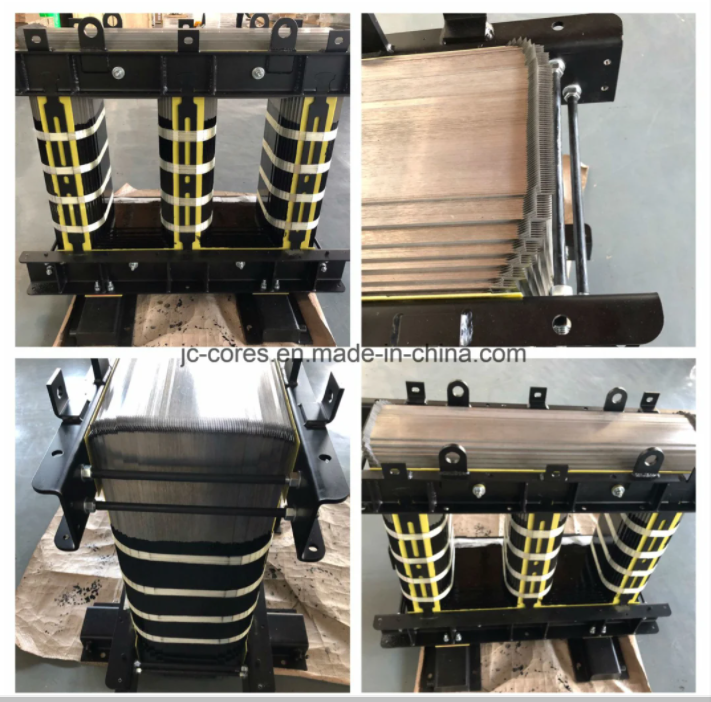

 Product Show

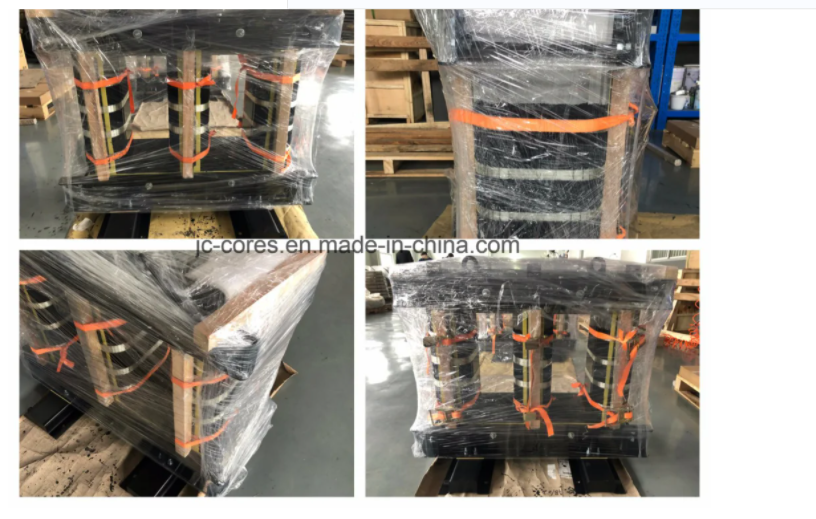

Packing
